Leica RTC360 3D Laser Scanner

Automatically pre-register point cloud data in the field to quickly conduct quality control checks, improve productivity and make better-informed decisions on site

The Leica RTC360 3D reality capture solution empowers users to document and capture their environments in 3D, improving efficiency and productivity in the field and in the office through fast, simple-to-use, accurate, and portable hardware and software. The RTC360 3D laser scanner is the solution for professionals to manage project complexities with accurate and reliable 3D representations and discover the possibilities of any site.

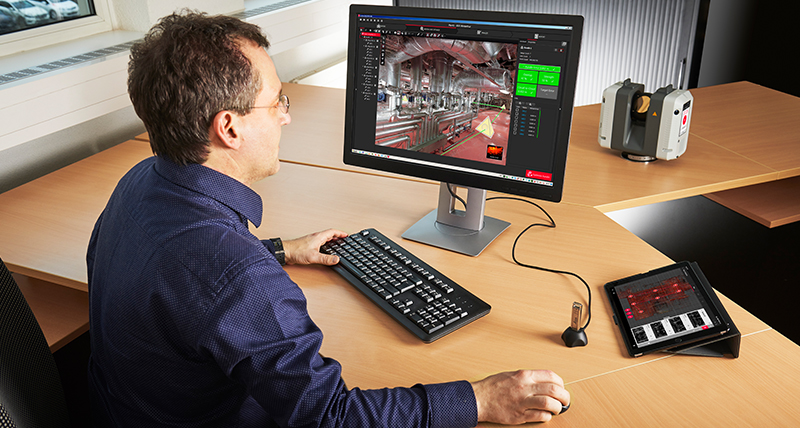

Highly portable, highly automated, intuitive and designed for maximum productivity, the RTC360 solution efficiently combines the RTC360 a high-performance 3D laser scanner, Leica Cyclone FIELD 360 mobile-device app for edge computing for automatically registering scans in real time, and Leica Cyclone REGISTER 360 PLUS office software to integrate your 3D model seamlessly into your workflow.
Capture scans, including enriching High-Dynamic Range (HDR) imagery, in less than two minutes.
Automatically record your moves from station to station to pre-register your scans in the field without manual intervention.
Augment your data capture with information tags illustrating the opportunities for better planning, reflect site reality, and boost your teams’ situational awareness
Directly publish your captured data from Cyclone FIELD 360 to Reality Cloud Studio, powered by HxDR.

Leica RTC360 med Boston Dynamics Spot

Tillbehörskit och skyddsram tillgängligt nu! Vill du veta mer?

KONTAKTA OSS

Fast

The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of coloured 3D point clouds can be completed in under two minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximise productivity.

Agile

Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.

Exakt

Data med lågt brus ger bättre bilder, vilket leder till skarpa scanningar av hög kvalitet som är detaljrika och färdiga att användas inom en rad olika tillämpningsområden. Scannern Leica RTC360 erbjuder utomordentlig precision som kan kontrolleras på mätplatsen när den kombineras med Cyclone FIELD 360-mjukvara för automatisk registrering i fält.

Förregistrering i fält

Appen Cyclone FIELD 360 är en del av helhetslösningen RTC360 och sammankopplar inhämtningen av 3D-data i fält med laserscannern och dataregistreringen på kontoret med Cyclone REGISTER 360 PLUS. Användaren kan automatiskt inhämta, registrera och undersöka scannings- och bilddata direkt på mätplatsen. Användargränssnittet kombinerar enkel hantering av komplexa uträkningar med en grafisk användarguide som ger en anmärkningsvärd användarupplevelse även för nybörjare.
